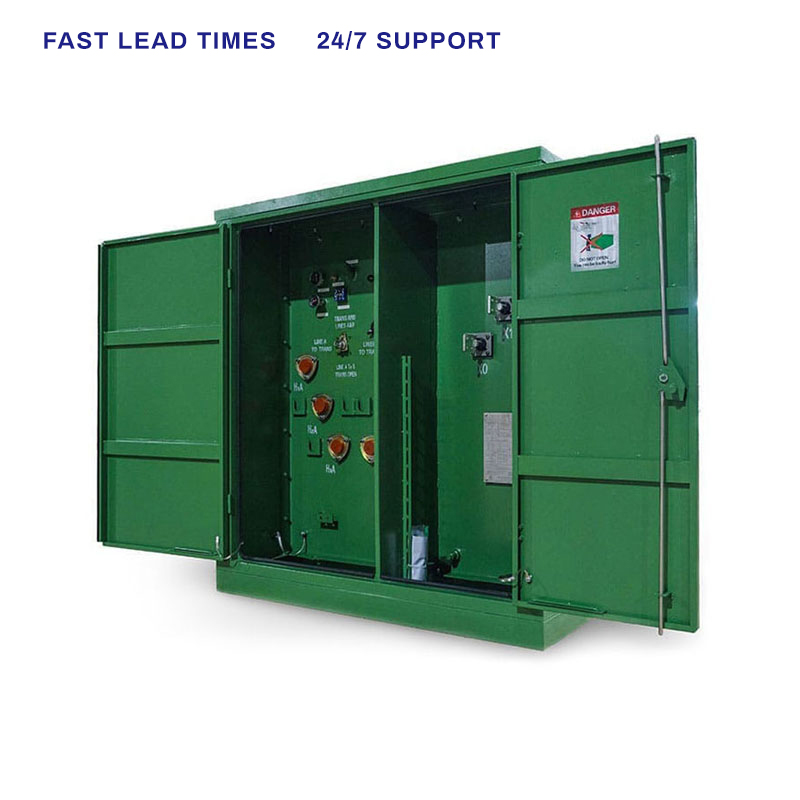

50 kVA | 80 kVA | 100 kVA Pad Mount Single and Three-Phase Oil-Immersed Distribution Transformer

Product Overview

single and three-phase pad-mounted transformers are powerful, dependable, and designed with the environment in mind. With the ability to function indoors and outdoors, these transformers offer enhanced reliability and protection against critical equipment failure. The lower operating costs and heat emissions of these transformers make them an ideal choice for a wide range of applications.

Benefits

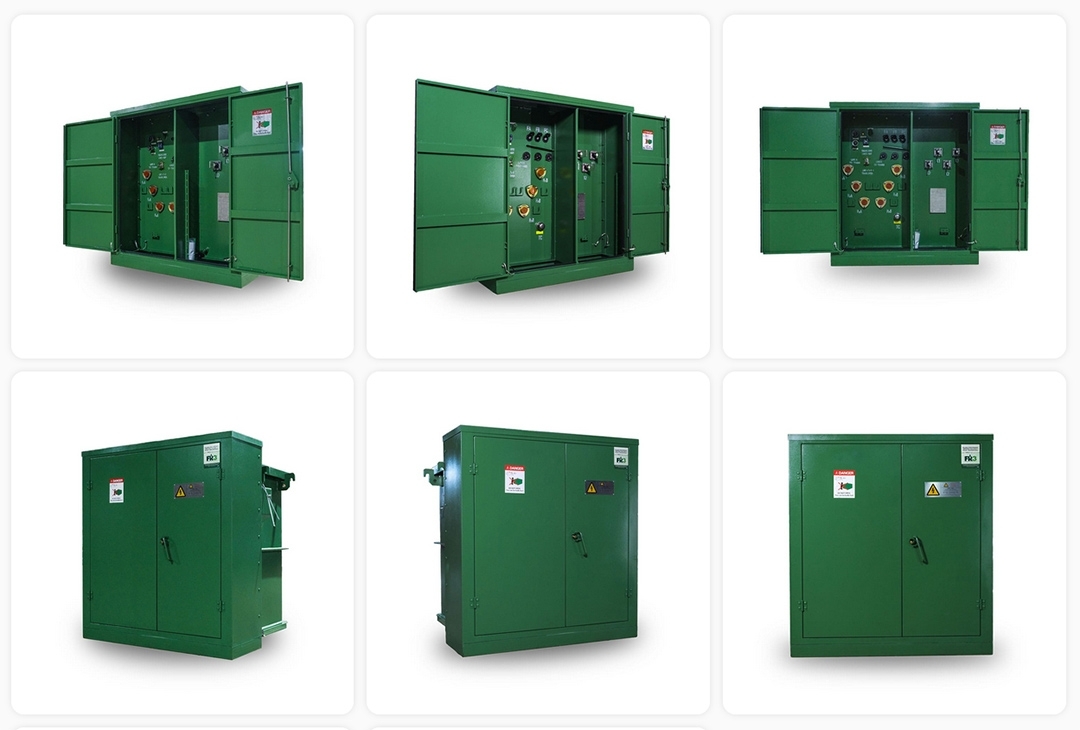

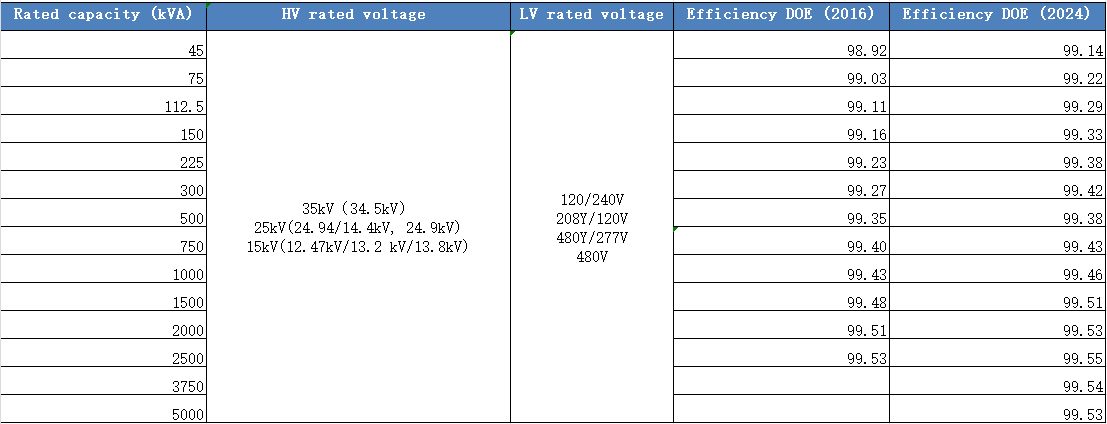

Pad mount transformers are protected against tampering and the weather, so they can be safely placed where people are present. All enclosures are made from heavy gauge sheet steel and powder painted with a baked-on coating to make them tamper-resistant. Our pad mount transformers come in live-front and dead-front designs, along with radial or loop feed. Our transformers are made of premium materials and typically support residential, commercial, and industrial loads in cities and rural areas. They are filled with sustainable and biodegradable dielectric fluid, which offers excellent fire protection and a longer lifespan. This transformer provides owners with substantial energy savings and offers environmental benefits. Higher efficiency extends the transformer’s lifespan and turns into significant cost savings in the form of lower energy bills and reduced ownership costs. This 50 KVA transformer from  meets current efficiency standards for the United States and Canada. This transformer provides owners with substantial energy savings and offers environmental benefits. Higher efficiency extends the transformer’s lifespan and turns into significant cost savings in the form of lower energy bills and reduced ownership costs. This 50 KVA transformer from  meets current efficiency standards for the United States and Canada. MPS Transformers are low-noise, energy-efficient, pad-mounted distribution transformers. Tailored for industrial and commercial applications, this is the efficient power supply for your application. Our transformers are easily adaptable to the grid and optimized for hassle-free connection. They feature aluminum or copper windings and have customizable input/output voltages. For more information or advice on your transformer project, please get in touch with us.

Transformer Features

This 50 KVA pad-mounted transformer comes in single and three-phase configurations with a voltage rating of 2,400 – 46,000 V on the primary side and 208Y/120 V to 14,400 V on the secondary side. This unit’s cores are made from cold-rolled silicon steel laminations using state-of-the-art technology. This transformer is highly energy efficient with lower heat emissions, resulting in fewer cooling requirements. The unit also features mineral oil as an insulating fluid with a 65°C temperature rise. With its NEMA Type 3R enclosure, this pad-mount unit can be used for indoor or outdoor applications. This transformer is primarily used in Electric power distribution, stepping down primary voltage, energy management systems, and underground industrial power distribution.
